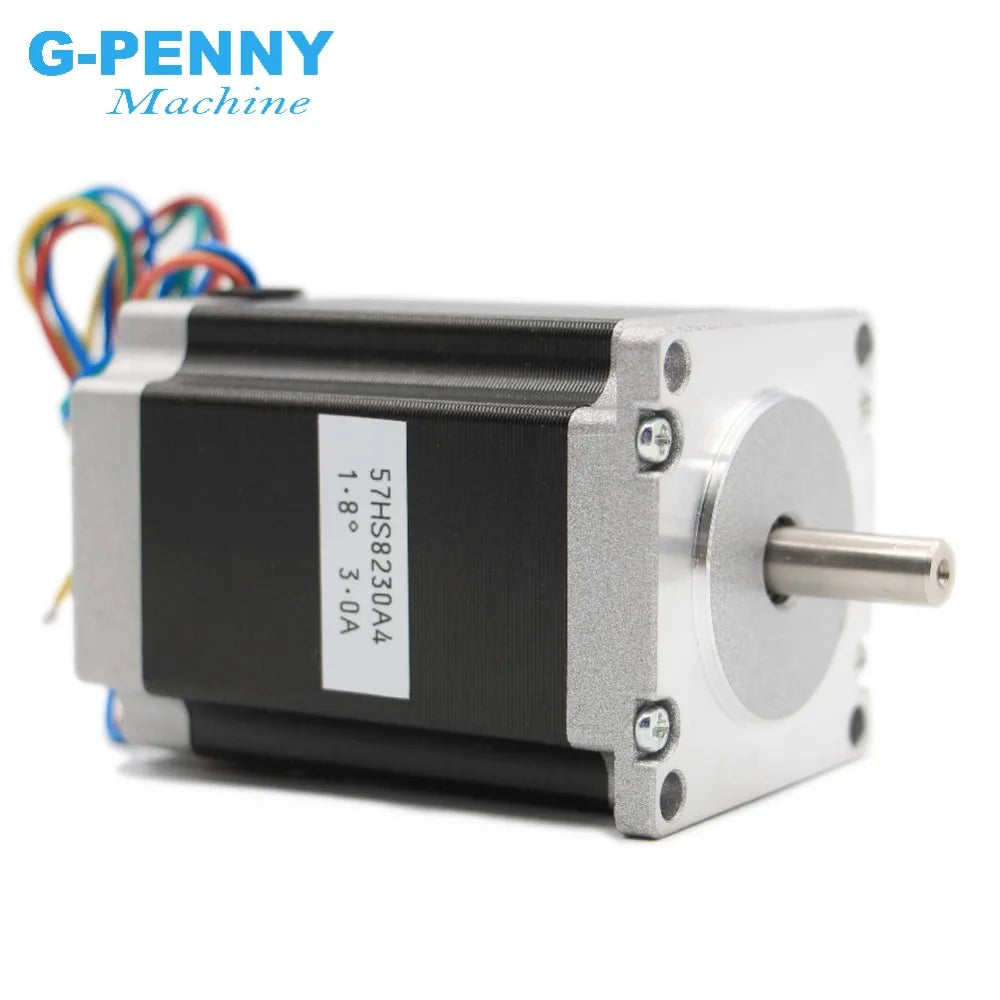

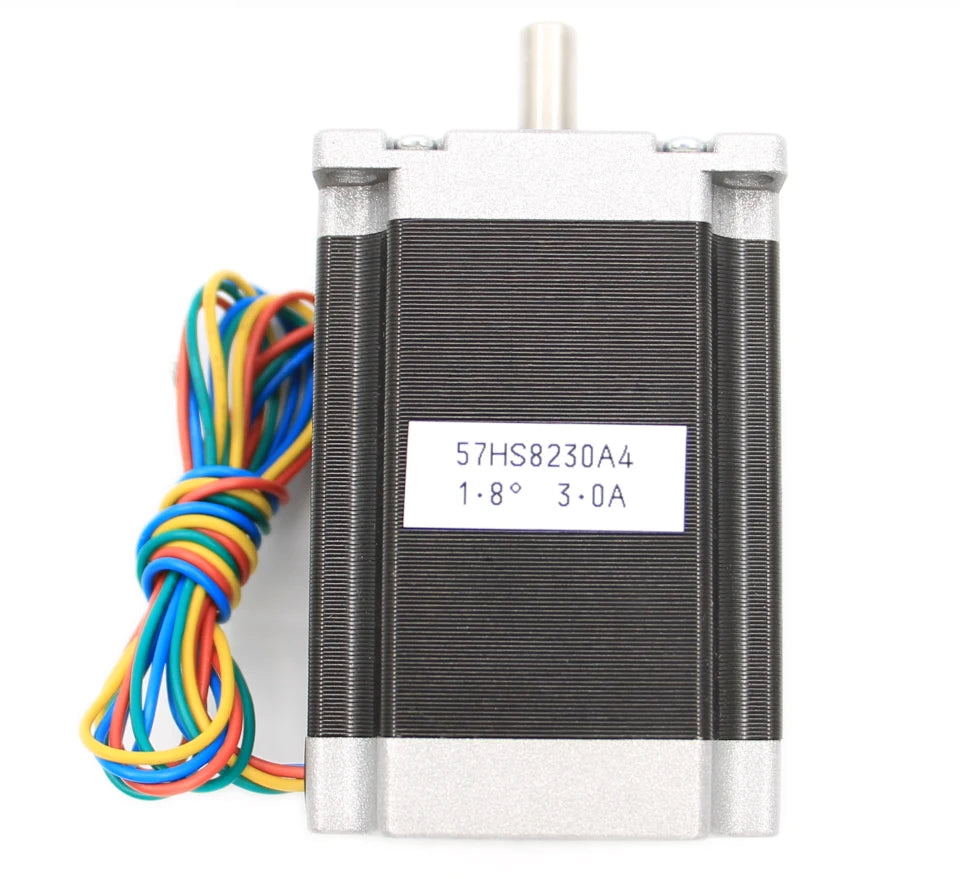

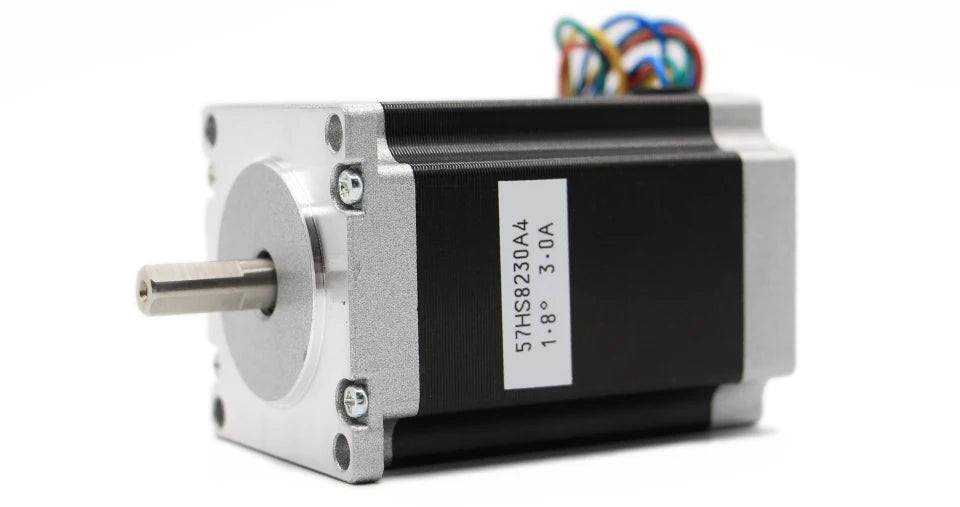

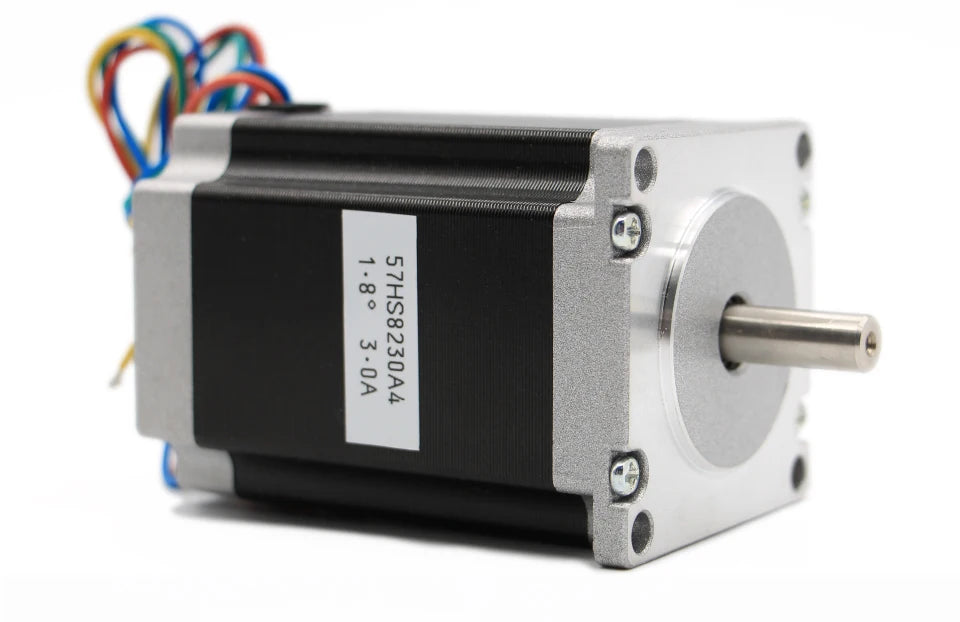

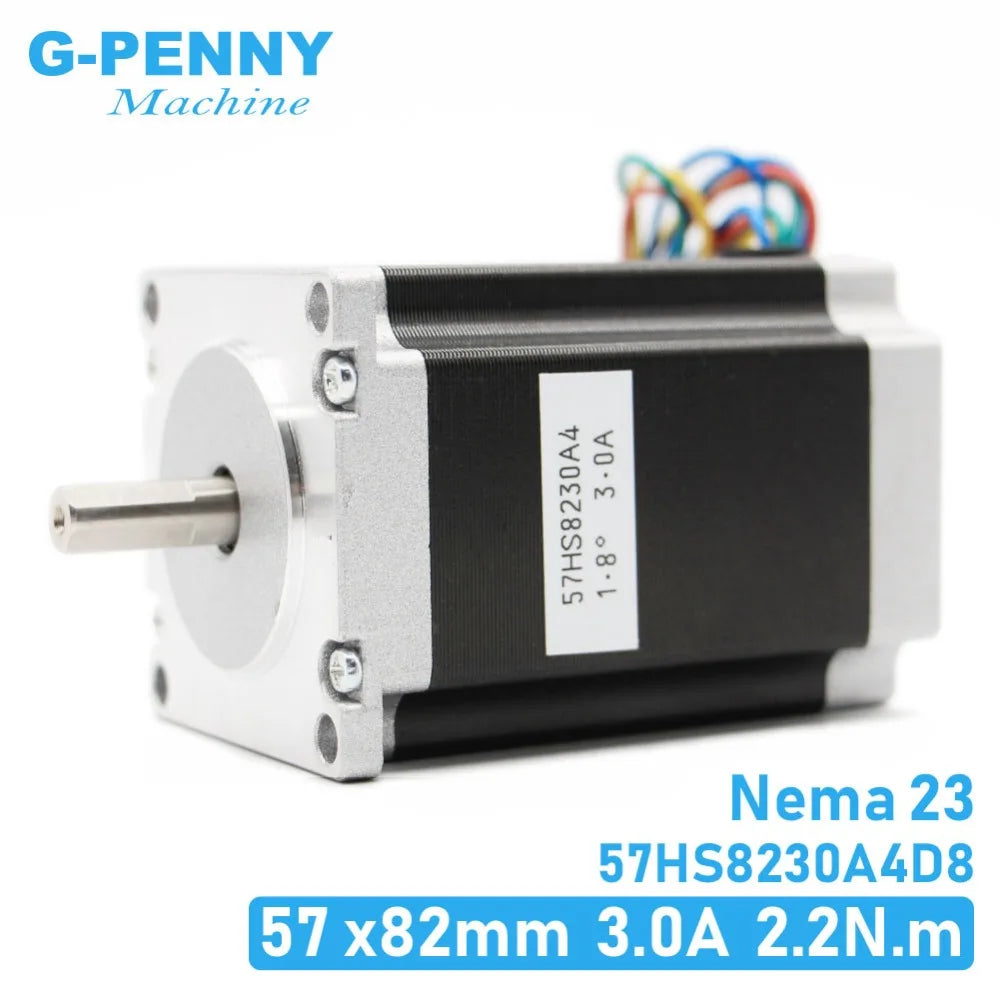

NEMA 23 CNC Stepper motor 57x82mm 3A 2.2N.m D=8mm 6.35mm 315Oz-in Nema23 CNC Router Engraving milling machine 3D printer
China Mainland / 6.35mm
€23,99
Prezzo promozionale
€23,99
Prezzo di listino
€41,99
Passa alle informazioni sul prodotto
NEMA 23 CNC Stepper motor 57x82mm 3A 2.2N.m D=8mm 6.35mm 315Oz-in Nema23 CNC Router Engraving milling machine 3D printer
€23,99
Prezzo promozionale
€23,99
Prezzo di listino
€41,99
SPECIFICATIONS
Brand Name: G-PENNY MACHINE
Certification: UL（纺织品）,CCC,ISO,ROHS,ce
Current: 3A
Current / Phase: 3A
Holding Torque: 2.2 N.m,2.2Nm
Inductance: 4mH

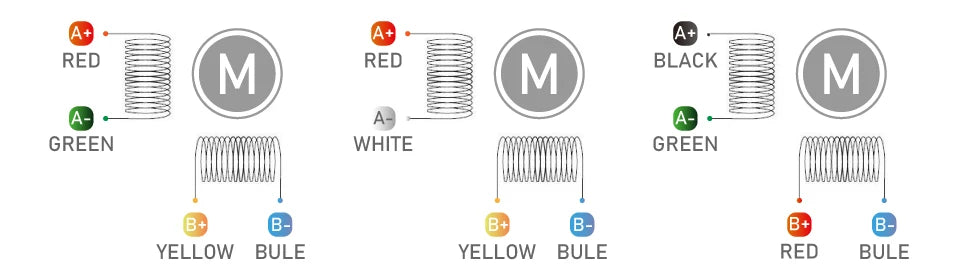

Lead Wire: 4
Model Number: 57HS8230A4D8
Origin: Mainland China
Phase: 2
Resistence: 1.2Ω
Shaft Diameter: 8mm

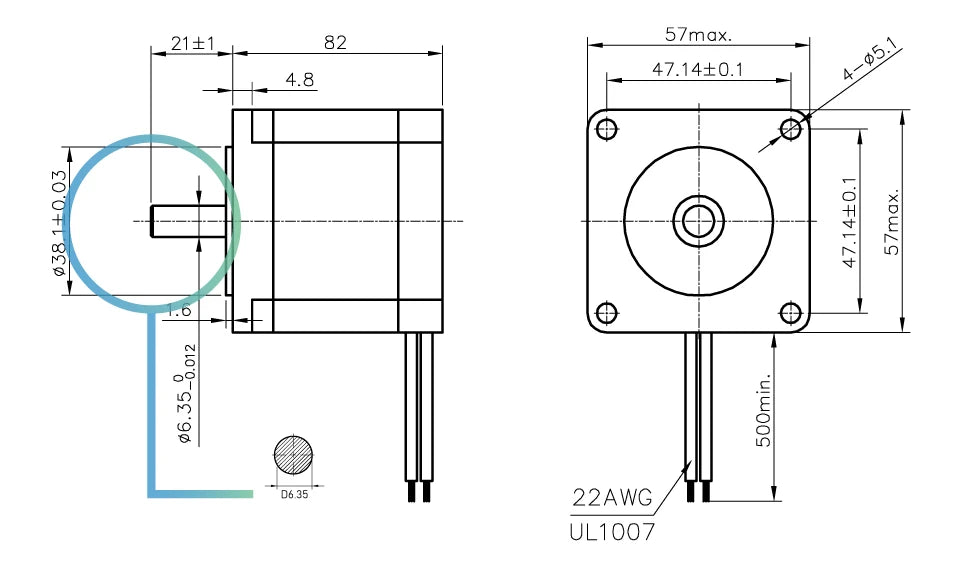

Size: 57x57x82mm
Step Angle(degrees): 1.8
Type: HYBRID
Voltage: 3.6v

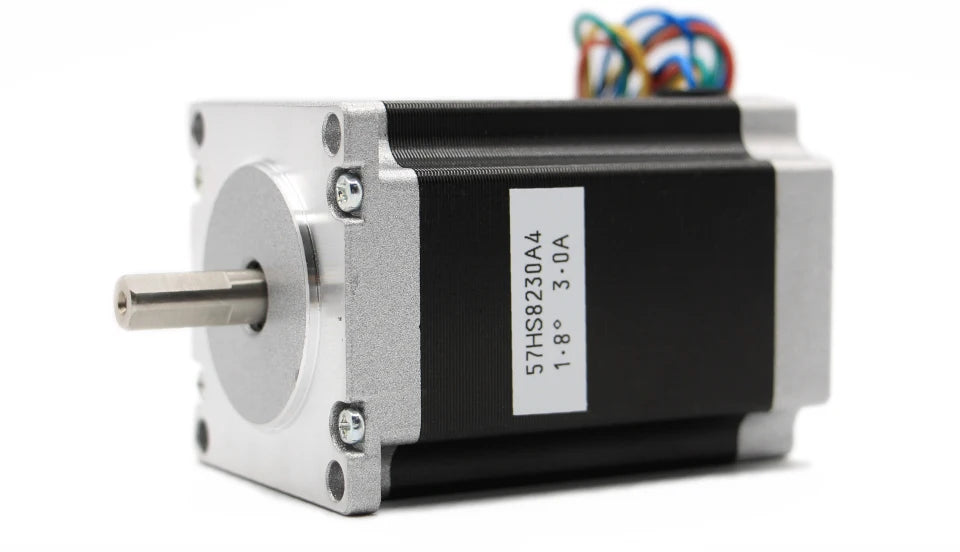

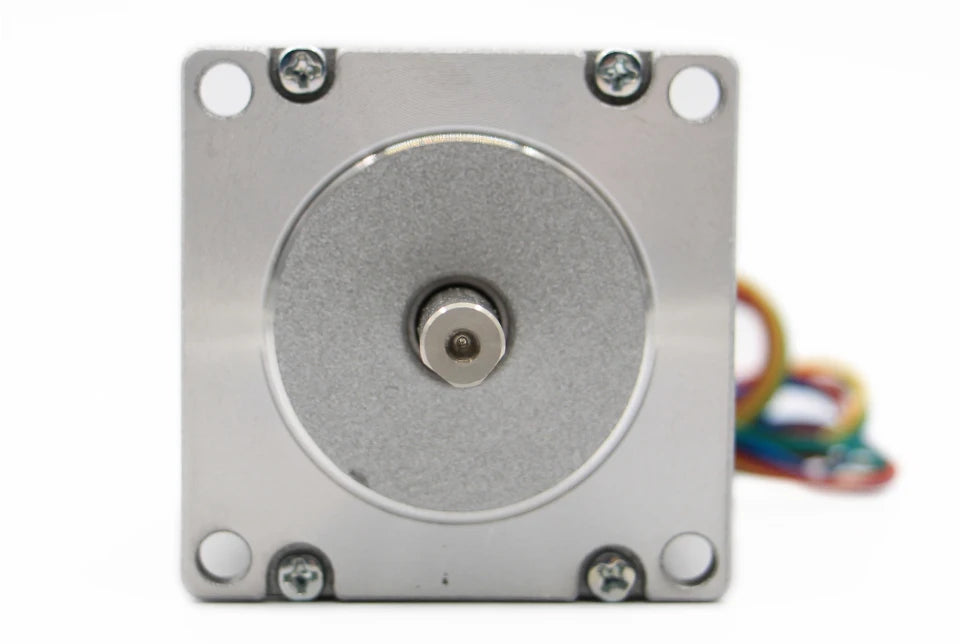

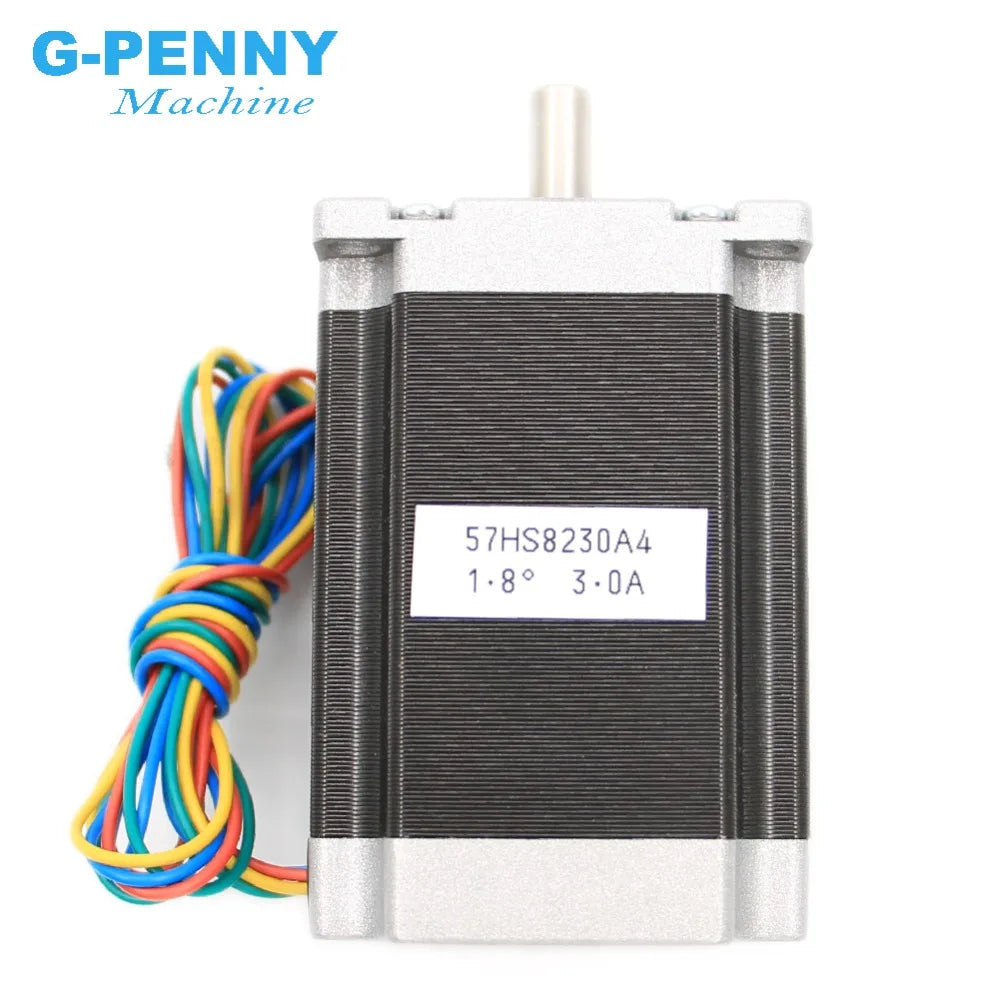

1pcs & Nema23 57x82mm Stepper Motor Single Shaft 3.0A 2.2Nm

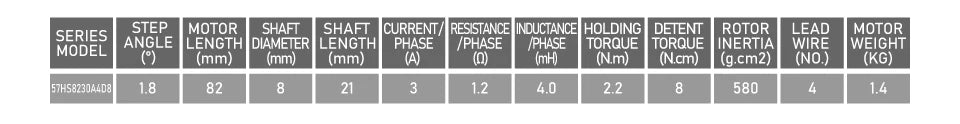

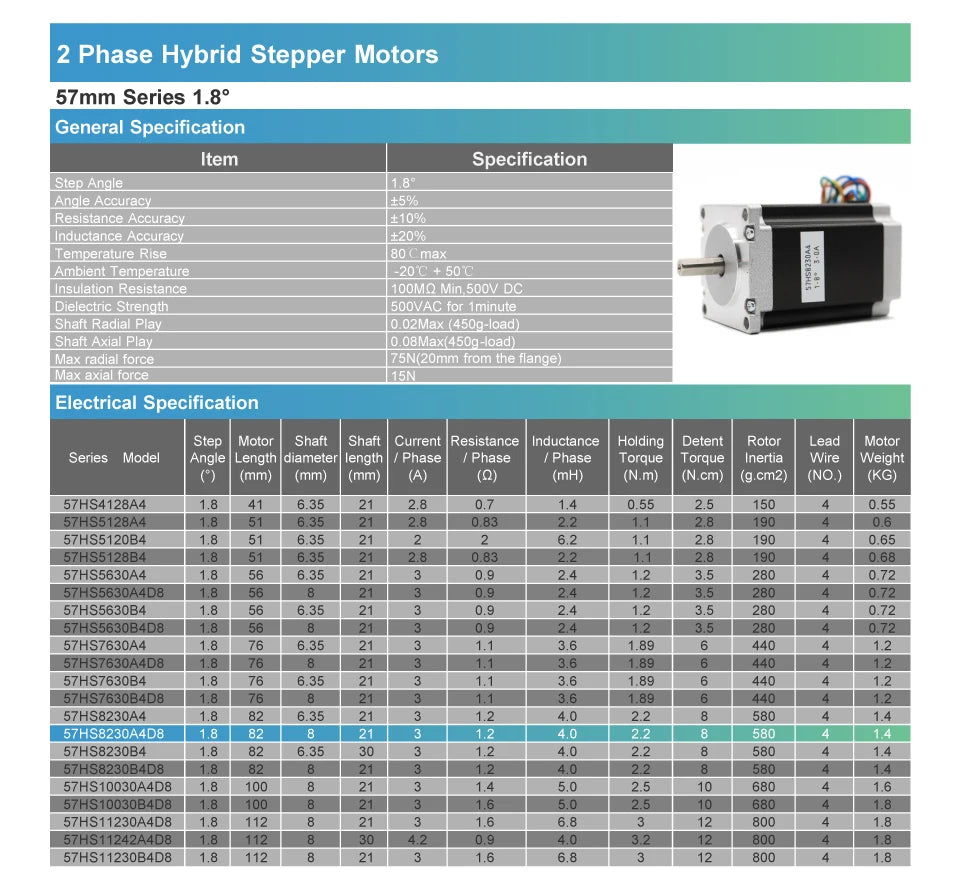

General Specification:
Phase:2
Step Angle:1.8 deg
Voltage:3.6v
Current:3.0A
Resistence:1.2Ω
Inductance:4.0mH
Holding Torque:2.2Nm
Shaft Diameter:8mm
Single Shaft

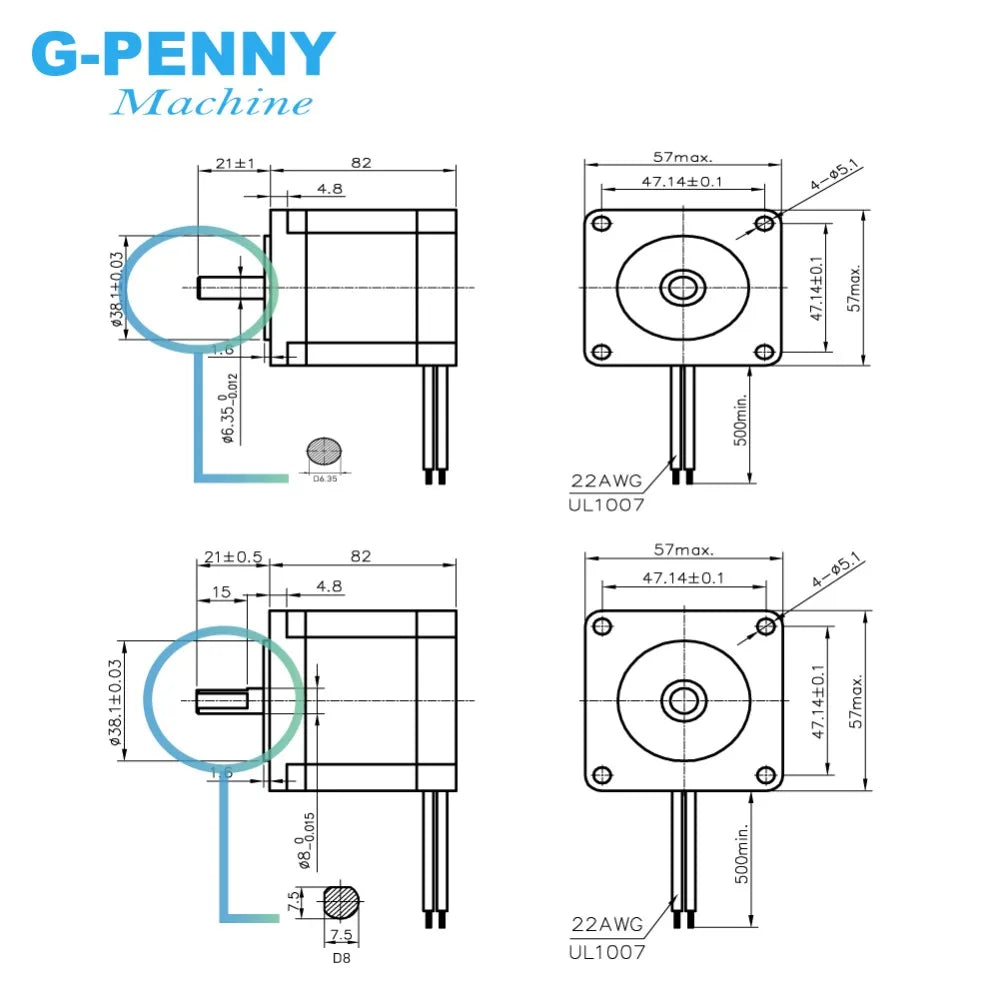

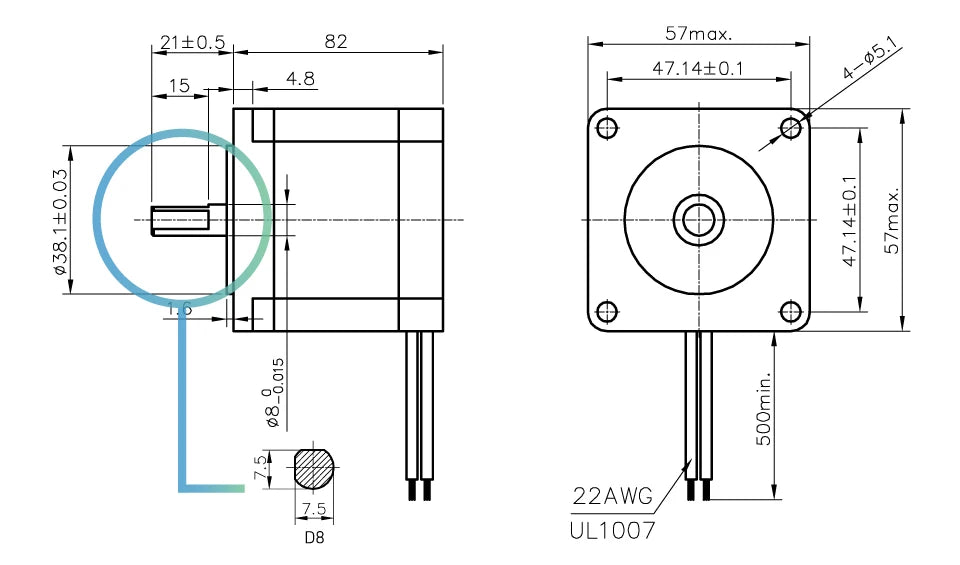

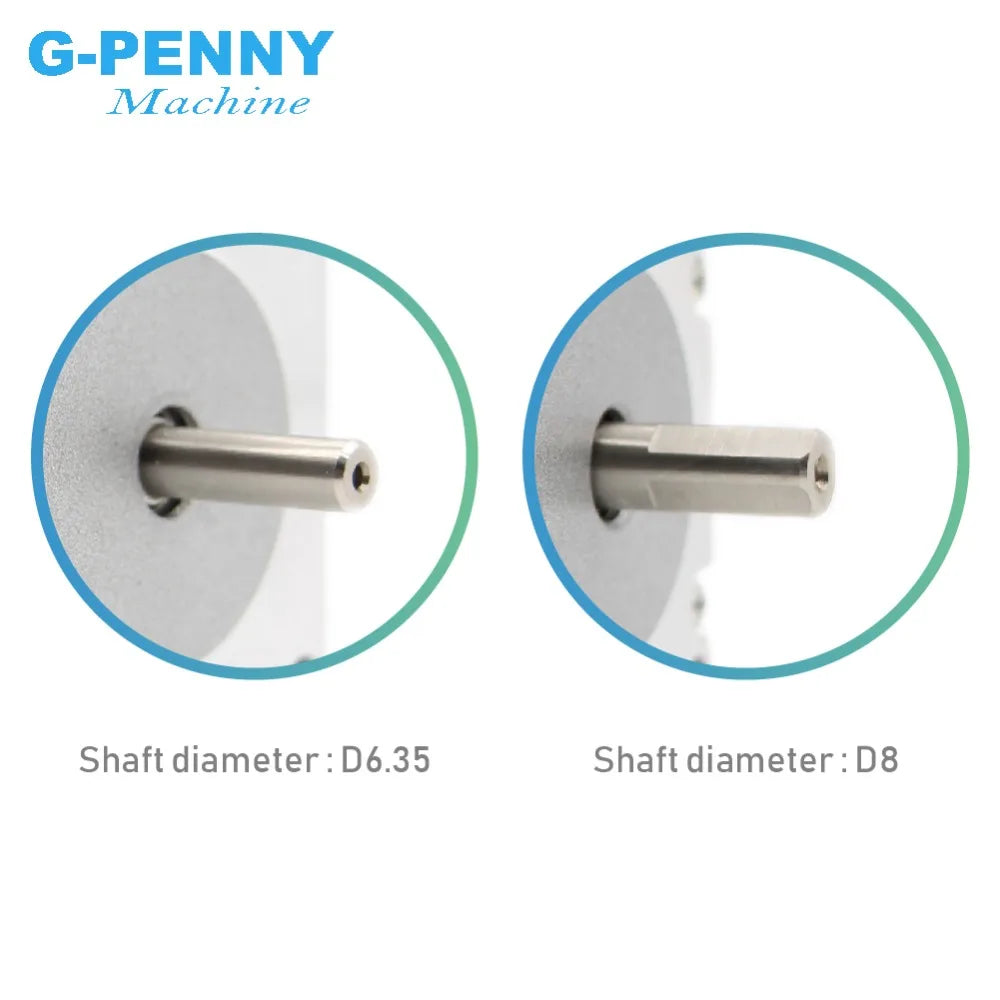

D=8mm:
D=6.35mm:
The magnetic steel is high grade,we usually use the SH level type.
The rotor is be coated,reduce burrs,working smoothly,less noise.

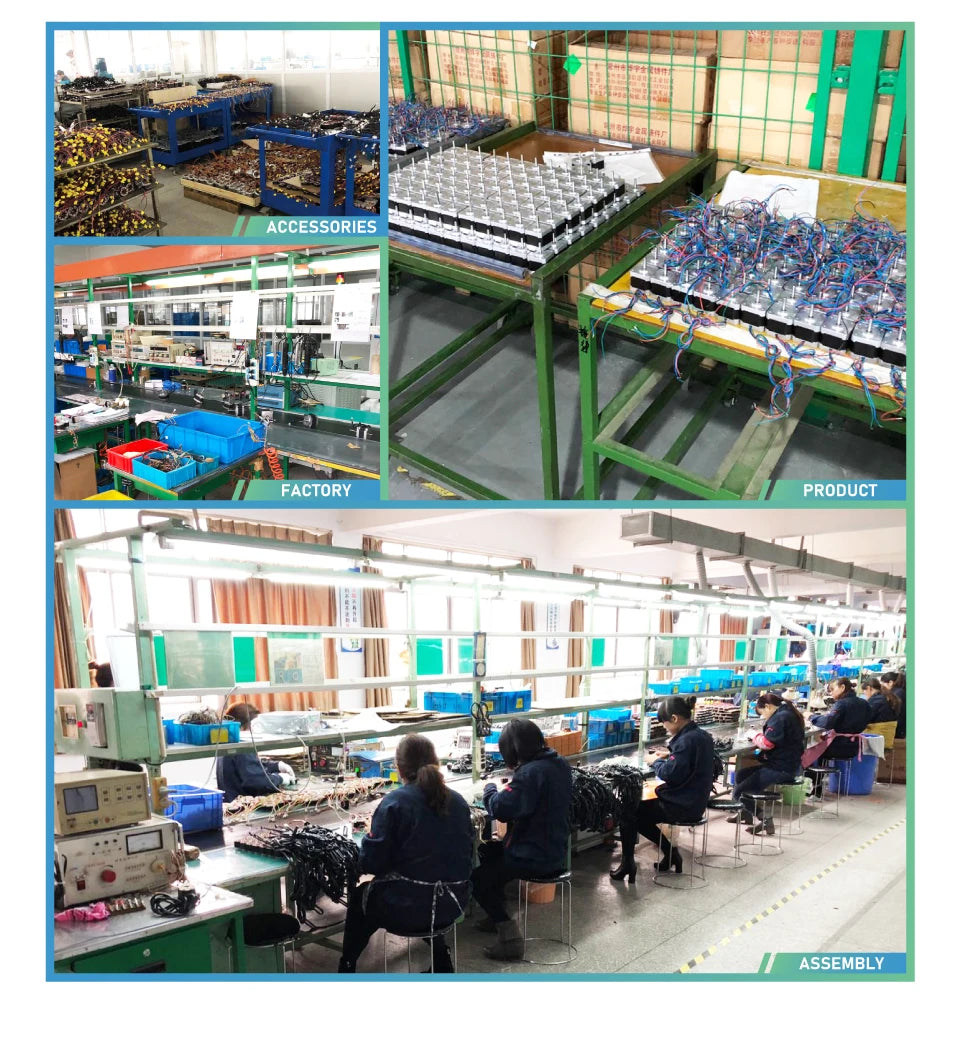

We test the stepper motor parts step by step.Stator is be test and rotor is be test before assemble.
After we assemble the stepper motor, we will do one more test for it, to make sure the quality is good.

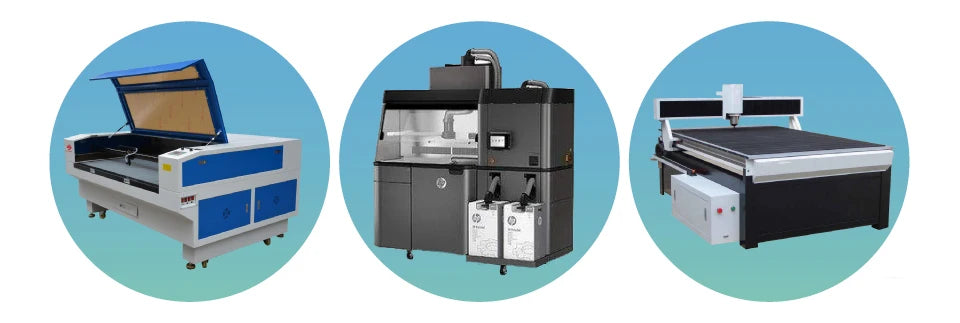

This products are widely used in engraving machine, printer, medical equipment,embroiderymachine,stagelighting,textileautomation,printing,packaging and other industries automation equipment.
Shipping Cost
Our products are sold worldwide.
If you need many items in the same time, please contact us in advance to confirm shipping cost.
Payment:
We accept paypal credit, bank transfer, western union etc.
Payment must be made within 7days calendar days of the auction end time.
Problem and Feedback:
PLEASE DON'T leave any negative feedback before you contact us.
We are honest and helpful supplier , we will try our best to solve problems with you.
Your satisfaction is very important for our store, so please contact us before you want to leave a negative feedback.
Thanks very much in advance.
Refund:
If you are NOT SATISFIED with our package like the products is damage, please do not sign it and contact us immediately.
If it is possible, please take some photos or make a small video about it. It will help us to solve the problems.
Note:
We can produce the product according to our customer's design.
If you need something is very special, please contact us about it.
We are willing to help you about it.
